OVERHEAD LINE & POLE-MOUNTED TRANSFORMER INSTALLATION
Project Type
Photography
Date
April 2023
Abeokuta
Ogun State
July
July, 2025

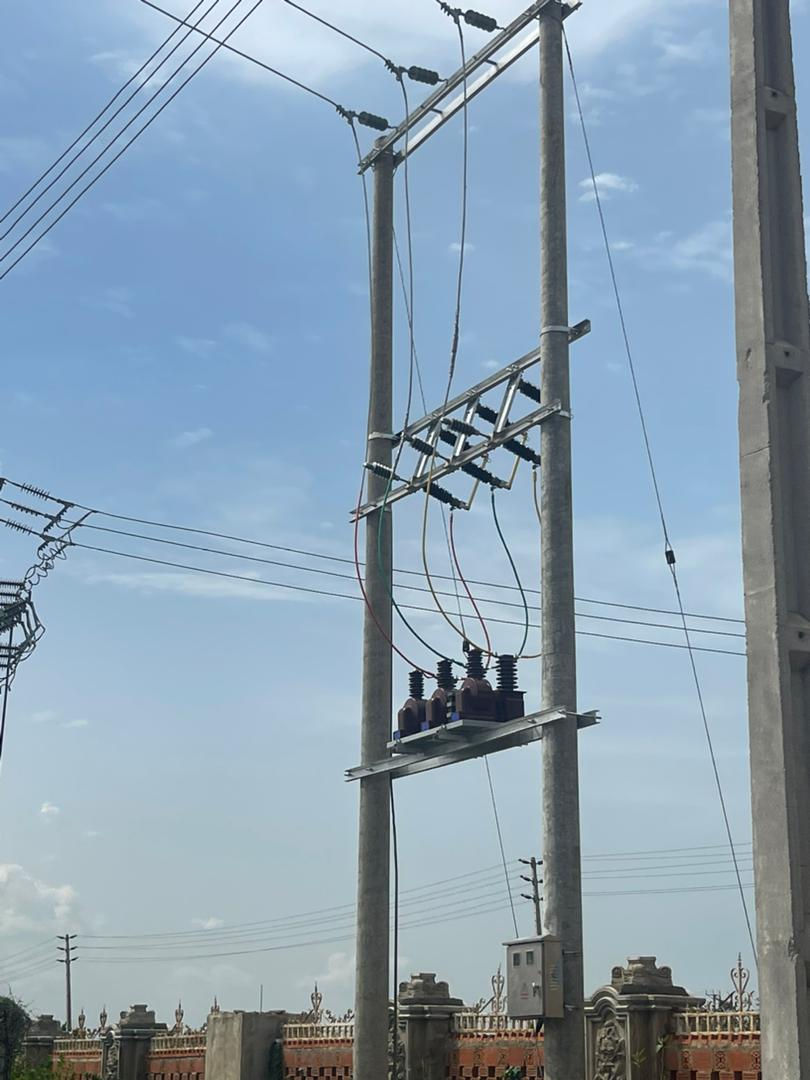

This project involved the supply, installation, and commissioning of a medium-voltage overhead distribution system with a pole-mounted transformer and integrated protection equipment for an industrial facility.
Scope of Work Executed
- Installation of reinforced concrete utility poles and galvanized steel cross-arms
- Mounting of high-voltage drop-out fuse cut-outs and lightning arresters
- Installation of gang-operated air-break (GOAB) switch for sectionalizing and isolation
- Pole-mounted oil-immersed distribution transformer installation
- Fabrication and installation of low-voltage distribution cabinet
- Termination of HV and LV cables with proper insulation and phase balancing
- Structured cable management and mechanical support system
- Earthing and grounding system for transformer body, lightning arresters, and structures
- Testing, protection checks, and commissioning
- Proper phase color coding and conductor routing for operational clarity
- Elevated switchgear arrangement for safe isolation and maintenance access
- Surge protection integration to safeguard equipment from overvoltage conditions
- Industrial-grade installation designed for high-load factory operations
- Compliance with medium-voltage safety and installation standards
